pCY 3010-07

价格:1200元

联系方式:I47-825O-882O

相关技术服务:质粒构建    基因合成    质粒大提

买家导航

载体基本信息

质粒名称: pCY 3010-07
出品公司: 爱迪基因
目录编号: 36212
存储实验室: Anne Robinson

载体骨架基本信息
载体名称: pCY3010-02
载体抗性: 氨苄西林
生长说明: 用于DNA恢复的dh5alpha(即DNA预处理)。
载体类型: 用于PCR和同源重组的酵母盒
筛选标记: 博莱霉素
生长条件: 37 ℃

插入基因信息
插入基因名称: 红链霉菌博来霉素
物种来源: 印度斯坦链异壁菌
插入大小: 970 bp
标签/融合蛋白: yepolylinker cerulean zeocin(主干上的C终端)
克隆方法: 限制性内切酶
5' 克隆位点: bglii(如果销毁则未知)
3' 克隆位点: SACI(如果销毁则未知)
5' 测序引物 CGAAAAGAGAGACCACATGGTCC

文献引用方法
材料和方法部分: pCY 3010-07 was a gift from Anne Robinson (Addgene plasmid # 36212 ; http://n2t.net/addgene:36212 ; RRID:Addgene_36212)
参考文献部分:
Cassette series designed for live-cell imaging of proteins and high-resolution techniques in yeast. Young CL, Raden DL, Caplan JL, Czymmek KJ, Robinson AS. Yeast. 2012 Mar;29(3-4):119-36. doi: 10.1002/yea.2895. Epub 2012 Apr 4. 10.1002/yea.2895 PubMed 22473760

载体图谱质粒图谱和多克隆位点信息

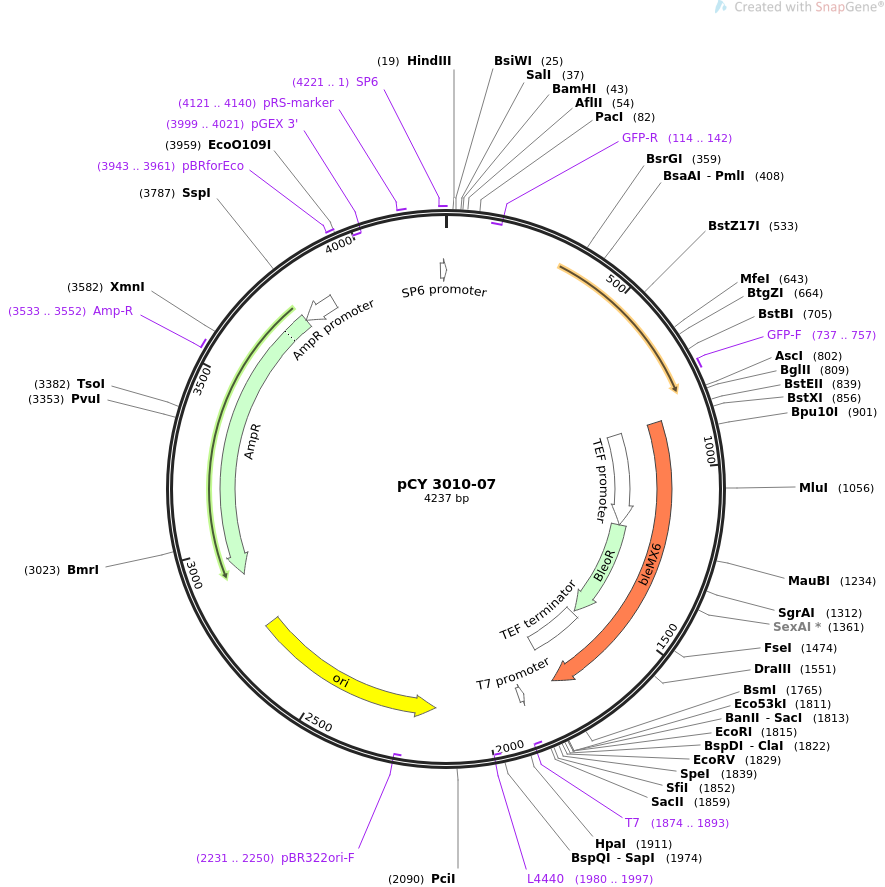

pCY 3010-07质粒图谱

载体简介

载体序列

LOCUS       pCY 3010-07                4237 bp ds-DNA     circular SYN 06-AUG-2018
DEFINITION  synthetic circular DNA
ACCESSION   .
VERSION     .
KEYWORDS    pCY 3010-07
SOURCE      synthetic DNA construct
  ORGANISM  synthetic DNA construct
REFERENCE   1  (bases 1 to 4237)
  AUTHORS   Young CL, Raden DL, Caplan JL, Czymmek KJ, Robinson AS
  TITLE     Cassette series designed for live-cell imaging of proteins and
            high-resolution techniques in yeast.
  JOURNAL   Yeast. 2012 Mar;29(3-4):119-36. doi: 10.1002/yea.2895. Epub 2012 Apr
            4.
  PUBMED    22473760
REFERENCE   2  (bases 1 to 4237)
  AUTHORS   .
  TITLE     Direct Submission
  JOURNAL   Exported Aug 6, 2018 from SnapGene Server 1.1.58
            http://www.snapgene.com
FEATURES             Location/Qualifiers
     source          1..4237
                     /organism="synthetic DNA construct"
                     /mol_type="other DNA"
     primer_bind     complement(114..142)
                     /label=GFP-R
                     /note="GFP, reverse primer. Does NOT anneal to EGFP"
     primer_bind     737..757
                     /label=GFP-F
                     /note="GFP, forward primer. Does NOT anneal to EGFP"
     gene            854..1778
                     /label=bleMX6
                     /note="yeast selectable marker conferring phleomycin
                     resistance"
     promoter        854..1197
                     /label=TEF promoter
                     /note="Ashbya gossypii TEF promoter"
     CDS             1198..1572
                     /codon_start=1
                     /gene="Sh ble from Streptoalloteichus hindustanus"
                     /product="antibiotic-binding protein"
                     /label=BleoR
                     /note="confers resistance to bleomycin, phleomycin, and
                     Zeocin(TM)"
                     /translation="MAKLTSAVPVLTARDVAGAVEFWTDRLGFSRDFVEDDFAGVVRDD
                     VTLFISAVQDQVVPDNTLAWVWVRGLDELYAEWSEVVSTNFRDASGPAMTEIGEQPWGR
                     EFALRDPAGNCVHFVAEEQD"
     terminator      1581..1778
                     /label=TEF terminator
                     /note="Ashbya gossypii TEF terminator"
     primer_bind     complement(1874..1893)
                     /label=T7
                     /note="T7 promoter, forward primer"
     promoter        complement(1875..1893)
                     /label=T7 promoter
                     /note="promoter for bacteriophage T7 RNA polymerase"
     primer_bind     complement(1980..1997)
                     /label=L4440
                     /note="L4440 vector, forward primer"
     rep_origin      complement(2151..2739)
                     /direction=LEFT
                     /label=ori
                     /note="high-copy-number ColE1/pMB1/pBR322/pUC origin of
                     replication"
     primer_bind     complement(2231..2250)
                     /label=pBR322ori-F
                     /note="pBR322 origin, forward primer"
     CDS             complement(2910..3770)
                     /codon_start=1
                     /gene="bla"
                     /product="beta-lactamase"
                     /label=AmpR
                     /note="confers resistance to ampicillin, carbenicillin, and
                     related antibiotics"
                     /translation="MSIQHFRVALIPFFAAFCLPVFAHPETLVKVKDAEDQLGARVGYI
                     ELDLNSGKILESFRPEERFPMMSTFKVLLCGAVLSRIDAGQEQLGRRIHYSQNDLVEYS
                     PVTEKHLTDGMTVRELCSAAITMSDNTAANLLLTTIGGPKELTAFLHNMGDHVTRLDRW
                     EPELNEAIPNDERDTTMPVAMATTLRKLLTGELLTLASRQQLIDWMEADKVAGPLLRSA
                     LPAGWFIADKSGAGERGSRGIIAALGPDGKPSRIVVIYTTGSQATMDERNRQIAEIGAS
                     LIKHW"
     primer_bind     3533..3552
                     /label=Amp-R
                     /note="Ampicillin resistance gene, reverse primer"
     promoter        complement(3771..3875)
                     /gene="bla"
                     /label=AmpR promoter
     primer_bind     3943..3961
                     /label=pBRforEco
                     /note="pBR322 vectors, upsteam of EcoRI site, forward
                     primer"
     primer_bind     complement(3999..4021)
                     /label=pGEX 3'
                     /note="pGEX vectors, reverse primer"
     primer_bind     4121..4140
                     /label=pRS-marker
                     /note="pRS vectors, use to sequence yeast selectable
                     marker"
     promoter        4221..2
                     /label=SP6 promoter
                     /note="promoter for bacteriophage SP6 RNA polymerase"
     primer_bind     4221..1
                     /label=SP6
                     /note="SP6 promoter, forward primer"
ORIGIN
        1 gaacgcggcc gccagctgaa gcttcgtacg ctgcaggtcg acggatcccc gggcttaaga
       61 tcggtgacgg tgctggttta attaacagta aaggagaaga acttttcact ggagttgtcc
      121 caattcttgt tgaattagat ggtgatgtta atgggcacaa attttctgtc agtggagagg
      181 gtgaaggtga tgcaacatac ggaaaactta cccttaaatt tatttgcact actggaaaac
      241 tacctgttcc atggccaaca cttgtcacta ctttgacttg gggtgttcaa tgctttgcta
      301 gatacccaga tcatatgaaa cagcatgact ttttcaagag tgccatgccc gaaggttatg
      361 tacaggaaag aactatattt ttcaaagatg acgggaacta caagacacgt gctgaagtca
      421 agtttgaagg tgataccctt gttaatagaa tcgagttaaa aggtattgat tttaaagaag
      481 atggaaacat tcttggacac aaattggaat acaacgctat ttcagataat gtatacatca
      541 ctgcagacaa acaaaagaat ggaatcaaag ctaatttcaa aattagacac aacattgaag
      601 atggaagcgt tcaactagca gaccattatc aacaaaatac tccaattggc gatggccctg
      661 tccttttacc agacaaccat tacctgtcca cacaatctgc cctttcgaaa gatcccaacg
      721 aaaagagaga ccacatggtc cttcttgagt ttgtaacagc tgctgggatt acactaggca
      781 tggatgaact atacaaatag ggcgcgccag atctgtttag cttgcctcgt ccccgccggg
      841 tcacccggcc agcgacatgg aggcccagaa taccctcctt gacagtcttg acgtgcgcag
      901 ctcaggggca tgatgtgact gtcgcccgta catttagccc atacatcccc atgtataatc
      961 atttgcatcc atacattttg atggccgcac ggcgcgaagc aaaaattacg gctcctcgct
     1021 gcagacctgc gagcagggaa acgctcccct cacagacgcg ttgaattgtc cccacgccgc
     1081 gcccctgtag agaaatataa aaggttagga tttgccactg aggttcttct ttcatatact
     1141 tccttttaaa atcttgctag gatacagttc tcacatcaca tccgaacata aacaaccatg
     1201 gccaagttga ccagtgccgt tccggtgctc accgcgcgcg acgtcgccgg agcggtcgag
     1261 ttctggaccg accggctcgg gttctcccgg gacttcgtgg aggacgactt cgccggtgtg
     1321 gtccgggacg acgtgaccct gttcatcagc gcggtccagg accaggtggt gccggacaac
     1381 accctggcct gggtgtgggt gcgcggcctg gacgagctgt acgccgagtg gtcggaggtc
     1441 gtgtccacga acttccggga cgcctccggg ccggccatga ccgagatcgg cgagcagccg
     1501 tgggggcggg agttcgccct gcgcgacccg gccggcaact gcgtgcactt cgtggccgag
     1561 gagcaggact gataatcagt actgacaata aaaagattct tgttttcaag aacttgtcat
     1621 ttgtatagtt tttttatatt gtagttgttc tattttaatc aaatgttagc gtgatttata
     1681 ttttttttcg cctcgacatc atctgcccag atgcgaagtt aagtgcgcag aaagtaatat
     1741 catgcgtcaa tcgtatgtga atgctggtcg ctatactgct gtcgattcga tactaacgcc
     1801 gccatcccga gctcgaattc atcgatgata tcagatccac tagtggccta tgcggccgcg
     1861 gatctgccgg tctccctata gtgagtcgta ttaatttcga taagccaggt taacctgcat
     1921 taatgaatcg gccaacgcgc ggggagaggc ggtttgcgta ttgggcgctc ttccgcttcc
     1981 tcgctcactg actcgctgcg ctcggtcgtt cggctgcggc gagcggtatc agctcactca
     2041 aaggcggtaa tacggttatc cacagaatca ggggataacg caggaaagaa catgtgagca
     2101 aaaggccagc aaaaggccag gaaccgtaaa aaggccgcgt tgctggcgtt tttccatagg
     2161 ctccgccccc ctgacgagca tcacaaaaat cgacgctcaa gtcagaggtg gcgaaacccg
     2221 acaggactat aaagatacca ggcgtttccc cctggaagct ccctcgtgcg ctctcctgtt
     2281 ccgaccctgc cgcttaccgg atacctgtcc gcctttctcc cttcgggaag cgtggcgctt
     2341 tctcaatgct cacgctgtag gtatctcagt tcggtgtagg tcgttcgctc caagctgggc
     2401 tgtgtgcacg aaccccccgt tcagcccgac cgctgcgcct tatccggtaa ctatcgtctt
     2461 gagtccaacc cggtaagaca cgacttatcg ccactggcag cagccactgg taacaggatt
     2521 agcagagcga ggtatgtagg cggtgctaca gagttcttga agtggtggcc taactacggc
     2581 tacactagaa ggacagtatt tggtatctgc gctctgctga agccagttac cttcggaaaa
     2641 agagttggta gctcttgatc cggcaaacaa accaccgctg gtagcggtgg tttttttgtt
     2701 tgcaagcagc agattacgcg cagaaaaaaa ggatctcaag aagatccttt gatcttttct
     2761 acggggtctg acgctcagtg gaacgaaaac tcacgttaag ggattttggt catgagatta
     2821 tcaaaaagga tcttcaccta gatcctttta aattaaaaat gaagttttaa atcaatctaa
     2881 agtatatatg agtaaacttg gtctgacagt taccaatgct taatcagtga ggcacctatc
     2941 tcagcgatct gtctatttcg ttcatccata gttgcctgac tccccgtcgt gtagataact
     3001 acgatacggg agggcttacc atctggcccc agtgctgcaa tgataccgcg agacccacgc
     3061 tcaccggctc cagatttatc agcaataaac cagccagccg gaagggccga gcgcagaagt
     3121 ggtcctgcaa ctttatccgc ctccatccag tctattaatt gttgccggga agctagagta
     3181 agtagttcgc cagttaatag tttgcgcaac gttgttgcca ttgctacagg catcgtggtg
     3241 tcacgctcgt cgtttggtat ggcttcattc agctccggtt cccaacgatc aaggcgagtt
     3301 acatgatccc ccatgttgtg caaaaaagcg gttagctcct tcggtcctcc gatcgttgtc
     3361 agaagtaagt tggccgcagt gttatcactc atggttatgg cagcactgca taattctctt
     3421 actgtcatgc catccgtaag atgcttttct gtgactggtg agtactcaac caagtcattc
     3481 tgagaatagt gtatgcggcg accgagttgc tcttgcccgg cgtcaatacg ggataatacc
     3541 gcgccacata gcagaacttt aaaagtgctc atcattggaa aacgttcttc ggggcgaaaa
     3601 ctctcaagga tcttaccgct gttgagatcc agttcgatgt aacccactcg tgcacccaac
     3661 tgatcttcag catcttttac tttcaccagc gtttctgggt gagcaaaaac aggaaggcaa
     3721 aatgccgcaa aaaagggaat aagggcgaca cggaaatgtt gaatactcat actcttcctt
     3781 tttcaatatt attgaagcat ttatcagggt tattgtctca tgagcggata catatttgaa
     3841 tgtatttaga aaaataaaca aataggggtt ccgcgcacat ttccccgaaa agtgccacct
     3901 gacgtctaag aaaccattat tatcatgaca ttaacctata aaaataggcg tatcacgagg
     3961 ccctttcgtc tcgcgcgttt cggtgatgac ggtgaaaacc tctgacacat gcagctcccg
     4021 gagacggtca cagcttgtct gtaagcggat gccgggagca gacaagcccg tcagggcgcg
     4081 tcagcgggtg ttggcgggtg tcggggctgg cttaactatg cggcatcaga gcagattgta
     4141 ctgagagtgc accatatgga catattgtcg ttagaacgcg gctacaatta atacataacc
     4201 ttatgtatca tacacatacg atttaggtga cactata
//
